MAX809TEUR

microprocessor supervisory circuit, 3-Pin SOT23, -0.3V to +6.0V, No External Components

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.60 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.30~0.60

PartNumber:: MAX809TEUR

Brand:: Maxim Integrated Products - Maxim | Pack: SOT | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Chan's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-29

From Other Seller

Part Number:MAX809TEUR
US $0.30 - 0.60
YL-G709

US $65.00 - 68.00 / Piece
(0) Remove
IRF9540NPBF

US $0.50 - 3.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

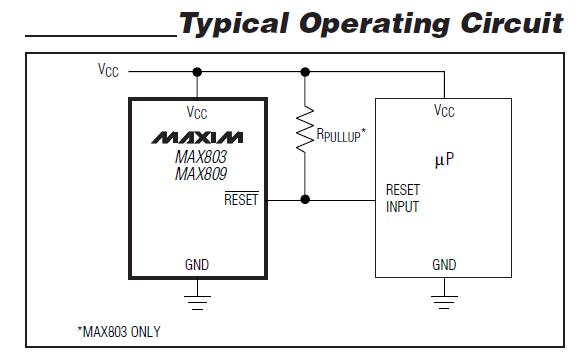

The MAX809TEUR is a microprocessor (μP) supervisory circuit used to monitor the power supplies in μP and digital systems. The MAX809TEUR provides excellent circuit reliability and low cost by eliminating external components and adjustments when used with +5V, +3.3V, +3.0V, or +2.5V powered circuits. The circuit MAX809TEUR performs a single function: they assert a reset signal whenever the VCC supply voltage declines below a preset threshold, keeping it asserted for at least 140ms after VCC has risen above the reset threshold. Reset thresholds suitable for operation with a variety of supply voltages are available. The applications of the MAX809TEUR are: Computers, Controllers, Intelligent Instruments, Critical μP and μC Power Monitoring, Portable/Battery-Powered Equipment, Automotive.

Parametrics

MAX809TEUR absolute maximum ratings: (1)Terminal Voltage (with respect to GND) VCC: -0.3V to +6.0V; (2)RESET, RESET (push-pull): -0.3V to (VCC + 0.3V); (3)RESET (open drain): -0.3V to +6.0V; (4)Input Current, VCC: 20mA; (5)Output Current, RESET, RESET: 20mA; (6)Rate of Rise, VCC: 100V/μs; (7)Continuous Power Dissipation: 174mW; (8)Operating Temperature Range: -40 to +125℃; (9)Storage Temperature Range: -65 to +150℃; (10)Lead Temperature (soldering, 10s): +300℃; (11)Soldering Temperature (reflow): +260℃.

Features

MAX809TEUR features: (1)Precision Monitoring of +2.5V, +3V, +3.3V, and +5V Power-Supply Voltages; (2)Fully Specified Over Temperature; (3)Available in Three Output Configurations: Push-Pull RESET Output; (4)140ms min Power-On Reset Pulse Width; (5)12μA Supply Current; (6)Guaranteed Reset Valid to VCC = +1V; (7)Power Supply Transient Immunity; (8)No External Components; (9)3-Pin SC70 and SOT23 Packages.
