Product Summary

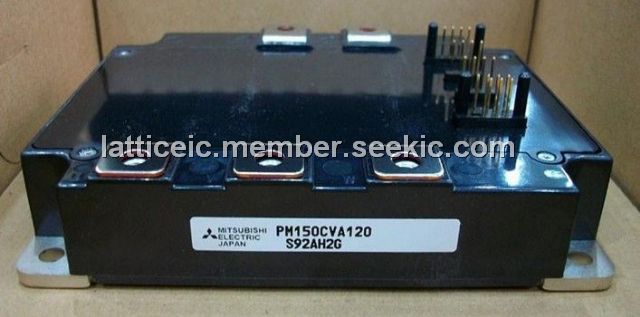

The PM150CVA120 is a Mitsubishi Intelligent Power Module. It is an isolated base module designed for power switching applications operating at frequencies to 20kHz. Built-in control circuits provide optimum gate drive and protection for the IGBT and free-wheel diode power devices. The applications of the PM150CVA120 include Inverters, UPS, Motion/Servo Control and Power Supplies.
Parametrics
PM150CVA120 absolute maximum ratings: (1)Power Device Junction Temperature, Tj: -20 to 150℃; (2)Storage Temperature, Tstg: -40 to 125℃; (3)Case Operating Temperature, TC: -20 to 100℃; (4)Mounting Torque, M5 Mounting Screws: 2.5 ~ 3.5 Nm; (5)Mounting Torque, M5 Main Terminal Screws: 2.5 ~ 3.5 Nm; (6)Module Weight (Typical): 1000 Grams; (7)Supply Voltage (Applied between P - N) VCC(surge): 1000 Volts; (8)Supply Voltage Protected by SC (VD = 13.5 ~16.5V, Inverter Part, Tj= 125℃ Start) VCC(prot.): 800 Volts; (9)Isolation Voltage (Main Terminal to Baseplate, AC 1 min.) Viso: 2500 Vrms.
Features
PM150CVA120 features: (1)Complete Output Power Circuit; (2)Gate Drive Circuit; (3)Protection Logic: Short Circuit; Over Temperature; Under Voltage.

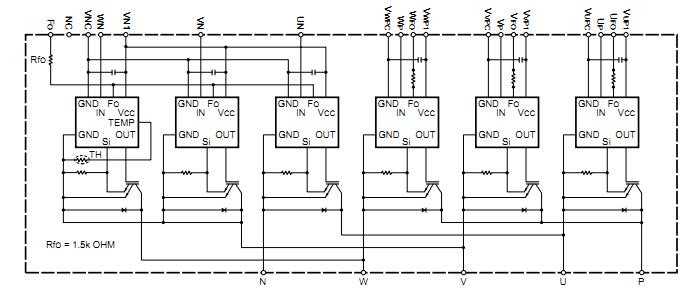

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PM150CVA120 |
|
MOD IPM 6PAC 1200V 150A |
Data Sheet |
|
|
||||||
