Product Summary

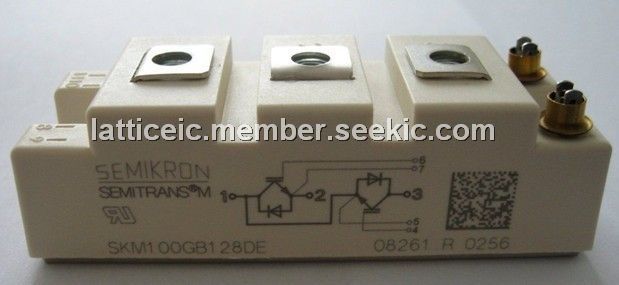

The SKM100GB128DE is a SPT IGBT Module. The applications of the SKM100GB128DE include AC inverter drives, UPS, Electronic welders at Fsw up to 20kHz.
Parametrics
SKM100GB128DE absolute maximum ratings: (1)TJ=25℃, VCES: 1200V; (2)TJ=150℃, TCASE=25℃, IC: 145A; TCASE=85℃, IC: 105A; (3)ICRM=20xlCnom, ICRM: 150A; (4)VGES: ±20V; (5)VCC=600V; VGE≤20V; TJ=125℃, VCES<1200V, tpsc: 10μs.
Features
SKM100GB128DE features: (1)SPT=soft-punch-through technology; (2)VCEsat with positive temperature coefficient; (3)High short circuit capability, self limiting to 6×Icnom.
Diagrams
 |
