Product Summary

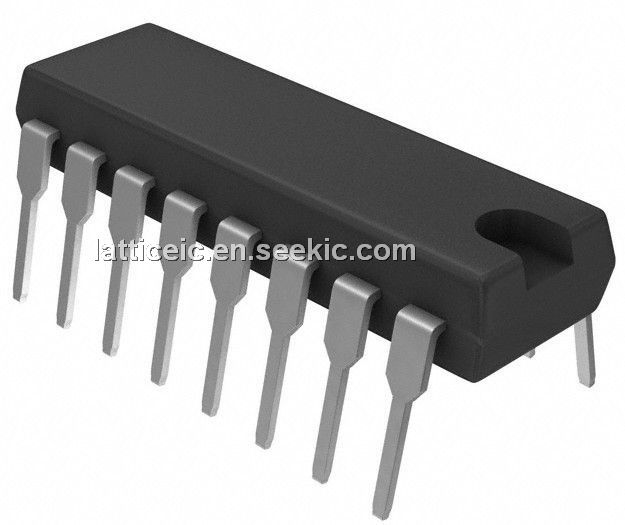

The SP232ACP is an RS-232 line driver/receiver. Performance enhancements include 10V/µs slew rate, 120k bits per second guaranteed transmission rate, and increased drive current for longer and more flexible cable configurations. Ease of use enhancements include smaller, 0.1µF charge pump capacitors, enhanced ESD protection, low power dissipation and overall ruggedized construction for commercial environments. The series is available in plastic and ceramic DIP and SOIC packages operating over the commercial, industrial and military temperature ranges.
Parametrics
SP232ACP absolute maximum ratings: (1)Vcc: +6V; (2)V+: (Vcc-0.3V) to +13.2V; (3)V-: 13.2V; (4)TOUT: (V+, +0.3V) to (V-, -0.3V); (5)ROUT: -0.3V to (Vcc +0.3V).
Features
SP232ACP features: (1)Operates from Single 5V Power Supply; (2)Meets All RS-232D and V.28 Specifications; (3)Multiple Drivers and Receivers; (4)Small Charge Pump Capacitors –0.1μF; (5)Operates with 0.1μF and 100μF Capacitors; (6)High Data Rate – 120kbps Under Load; (7)High Output Slew Rate –10V/μs Under Load; (8)Low Power Shutdown ≤1μA; (9)3-State TTL/CMOS Receiver Outputs; (10)±30V Receiver Input Levels; (11)Low Power CMOS – 15mA Operation.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SP232ACP/AEN/AEP |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
SP232ACP-L |
Exar |
RS-232 Interface IC RS232 ESD 2KV temp 0C to 70C |
Data Sheet |
|
|
||||||||||||
